Vertical Piston Filler (low viscosity GRQL-300 with sealer for Aluminum Sealant Cartridge)

Application

The vertical piston fillers are suitable for filling fluid materials, including polyurethane sealant, modified saline adhesive, silicone sealant, potting sealant, etc.

Description

This vertical filler is for aluminum and plastic cartridges, integrating automatic cartridge feeding, automatic plunger feeding, aluminum cartridge orientation, vertical filling, plunger inserting, plunger confirm, desiccant adding and cartridge closing with aluminum cap.

Technical parameters
Filling speed 20-25 containers/min.
Filling accuracy ±1g/300ml
Filling range 200ml-320ml (larger capacity can be customized)
Overall power 5.5KW
Gas pressure 0.7MPa
Gas consumption 120L/min
Working pressure of hydraulic system 7-9Mpa
Hydraulic cooling mode Water cooling, air cooling
Machine size (L x W x H) 2840x1200x2320mm
Net weight 1.8T

Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.

Structure
  • Conveying of empty bottle and plunger
    • 01: Empty cartridges load bin
    • 01: Motor
    • 01: Motor
  • Rotating mechanism
    01: Rotary mechanism
  • Bottle orientation
    01: Correction mechanism
    02: Lift mechanism
  • Automatic filling and automatic cutting
    • Sealant metering mechanism
    • Sealant metering mechanism
  • Automatic plunger inserting

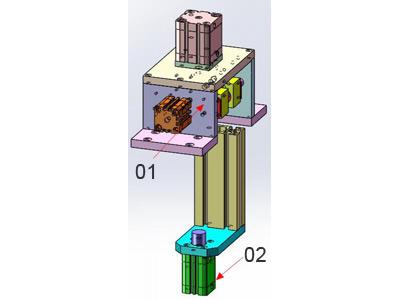

    • 01: Actuator A
    • 02: Actuator B
  • Plunger confirm
    01: Confirm mechanism
  • Desiccant adding
  • Cartridge closing with aluminum cap
    01: A cartridge closing with aluminum cap
    02: B cartridge closing with aluminum cap
  • Material discharge mechanism
    01: Product filling mechanism A
    02: Product unload mechanism B
  • Failure warning and prompting functions
