Three Head Piston Filler (high viscosity GRQY-320X3 with sealer)
Application
Our three head piston filler is for filling pastes, like silicone sealant, potting sealant, photovoltaic sealant, etc., into plastic cartridges.
Description
Compared to the single head and double head fillers, this three head piston filler has higher filling efficiency. It can fill three cartridges at one time, suitable for mass-production. Its installation requires a workshop with a height greater than 5m. This filler is integrated with automatic cartridge feeding, automatic plunger feeding, 3 sets of separate filling, plunger inserting and code-printing.
Technical parameters
Filling speed
85-95 containers/min.
Filling accuracy
±1g/300ml
Filling range
200ml-320ml (larger capacity can be customized)
Overall power
13.5KW
Gas pressure
0.7MPa
Gas consumption
210L/min
Working pressure of hydraulic system
7-9Mpa
Hydraulic cooling mode
Water cooling, air cooling
Machine size (L x W x H)
2300x1200x2000mm
Net weight
2.0T
Note: Great is able to match the voltage and frequency of the equipment depending on different customer’s locations.
Structure
Conveying of empty bottle and plunger

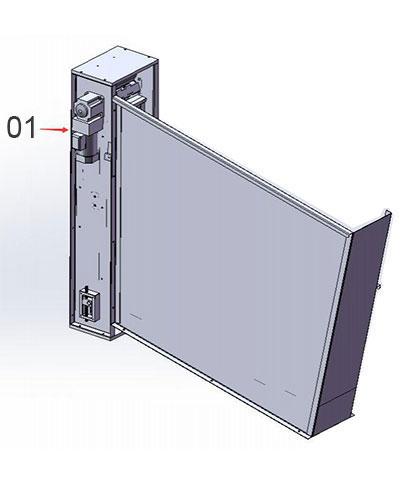

01: Empty cartridges load bin
01: Motor
01: Motor
Conveying mechanism
01: Products conveying mechanism
Automatic filling and automatic cutting
01: Actuator A
02: Actuator B
Automatic plunger inserting
01: Cylinder actuator A
02: Cylinder actuator B
03: Mould
Automatic rotary code printing
01: Products rotation and ink jet mechanism
Filling volume adjustment is optional in manual or automatic operation.
01: Products conveying mechanism
01: Actuator A
01: Cylinder actuator A
01: Products rotation and ink jet mechanism
