Double Head Piston Filler (high viscosity GRQY-320X2 with sealer)

The double head piston filler is mainly applied in plastic and paper cartridges for filling pastes, such as silicone sealant, potting sealant, photovoltaic sealant, liquid nails and so on.

This double head piston filler is upgraded on the basis of single head filler, from one filling head to two. So it can fill two cartridges at the same time, more efficient than single head fillers. Besides, it integrates functions of automatic cartridge feeding, automatic plunger feeding, filling, plunger inserting and code-printing.

Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.

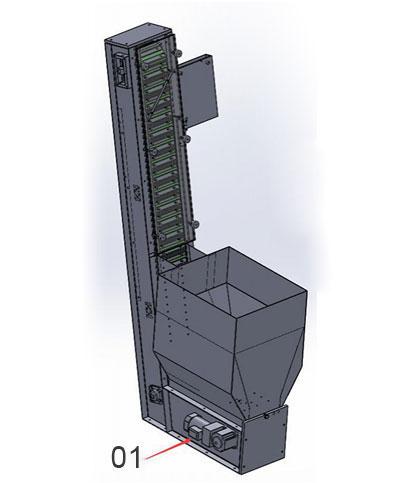

• Conveying of empty bottle and plunger

  •

    01: Empty cartridges load bin

  •

    01: Motor

  •

  •

    01: Motor

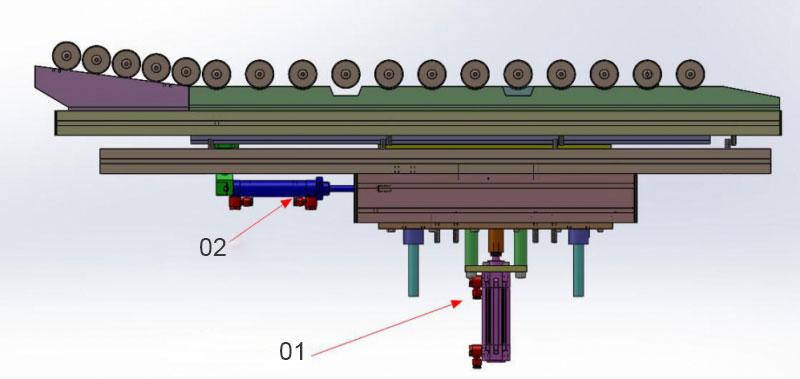

• Conveying mechanism



  01: Actuator A
  02: Actuator B
• Automatic filling and automatic cutting



  01: Actuator A
  02: Actuator B
• Automatic plunger inserting



  01: Cylinder actuator A
  02: Cylinder actuator B
  03: Mould

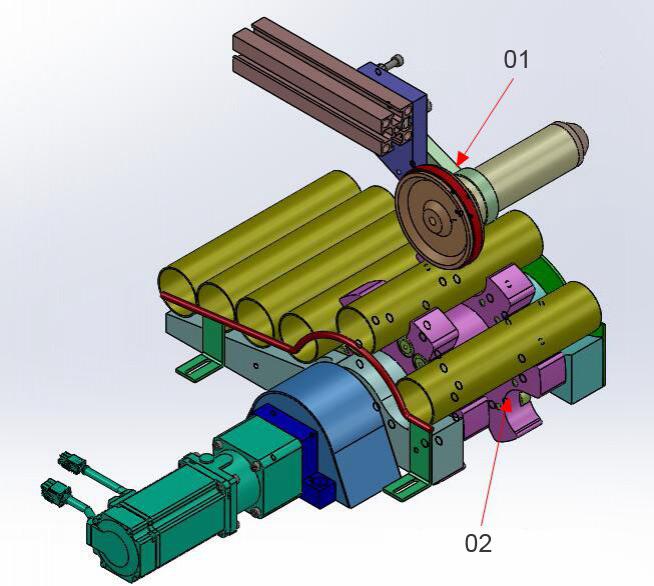

• Automatic rotary code-printing



  01: Printing mechanism A
  02: printing mechanism B
• Filling volume adjustment is optional in manual or automatic operation.
• Failure warning and prompting
