Automatic Piston Filler (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Application
The automatic piston filler is mainly applied for the filling of low viscosity liquids, like industrial potting sealant, polyurethane sealant and much more.
Description
The biggest feature of this automatic filler is independent dual-component filling. It can fill 25 cartridges per minute, which integrates automatic cartridge feeding, automatic plunger feeding, independent dual-component filling, plunger inserting and code-printing.
Technical parameters
Filling speed
18-25 containers/min.
Filling accuracy
±1g/300ml
Filling range
200ml-320ml (larger capacity can be customized)
Overall power
9.5KW
Gas pressure
0.7MPa
Gas consumption
180L/min
Working pressure of hydraulic system
7-9Mpa
Hydraulic cooling mode
Water cooling, air cooling
Machine size (L x W x H)
2840x1200x2320mm
Net weight
2.0T
Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.
Structure
Automatic conveying of empty cartridge and plunger

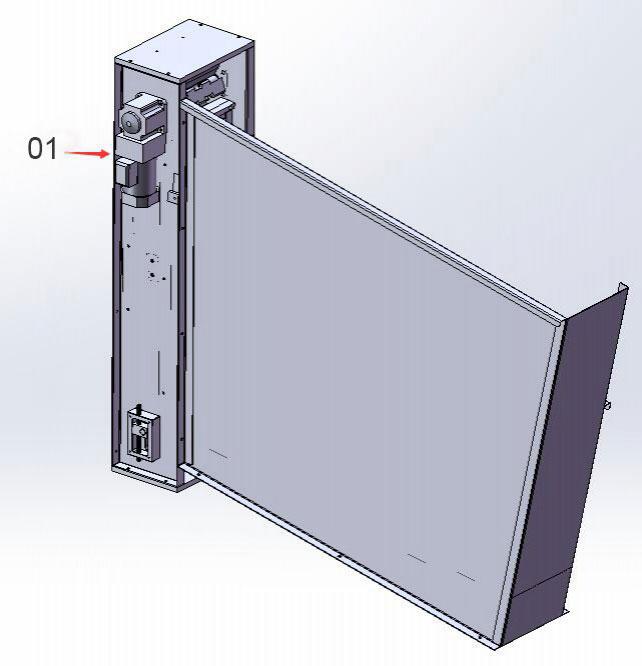

01: Empty cartridges load bin
01: Motor
01: Motor
Cartridge load bin
01: Feeding rotary mechanism
Conveying mechanism
01: Rotary mechanism
Two independent filling mechanisms
01:Metering mechanism
02:Filling lift mechanism

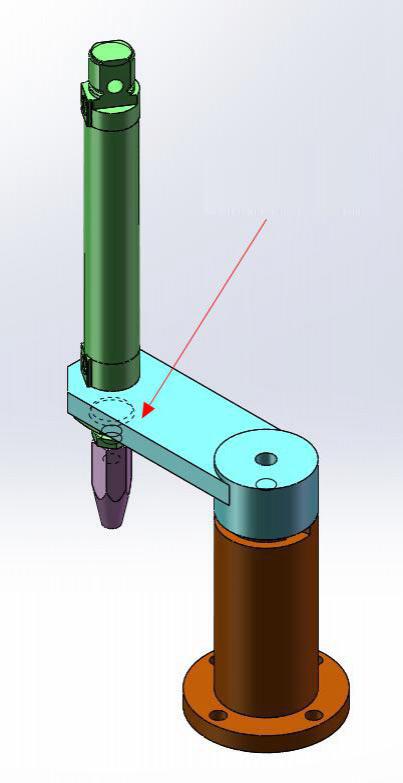

Automatic plunger inserting
01: Actuator A
02: Actuator B
Products unload mechanism
01: Products unload mechanism
After all the processes have been completed, the products are transferred by conveyor to the equipment packaging area.
Filling volume adjustment is optional in manual or automatic operation.
01: Feeding rotary mechanism
01: Products unload mechanism
