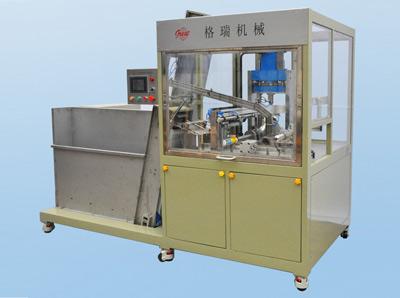

Piston Filler with Color Mixer (high viscosity GRQY-H3-300 with sealer)

Application

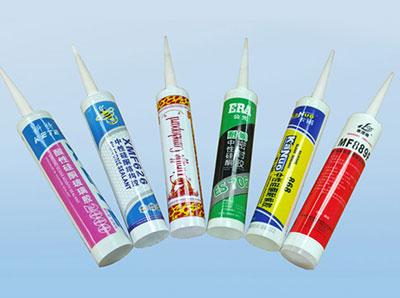

Piston fillers with color mixer are widely used for filling proportionally mixed sealant and color pastes. It is suited for the filling of pastes, such as silicone sealant, modified saline adhesive, etc.

Description

This piston filler has multiple functions of automatic cartridge feeding, automatic plunger feeding, color paste adding and mix filling, plunger inserting and code-printing. It can blend the color pastes and then fill the mixed products. This filler can fill 35caartridges per minute. All the processes are automated to save labor cost for you, as well as improving working efficiency.

Technical parameters
Color paste proportion Minimum volume ratio is 1%
Filling speed 30-40 containers/min.
Filling accuracy ±1g/300ml
Filling range 200ml-320ml (larger capacity can be customized)
Overall power 18KW
Gas pressure 0.7MPa
Gas consumption 120L/min
Working pressure of hydraulic system 12Mpa
Hydraulic cooling mode Water cooling, air cooling
Machine size (L x W x H) 2600x1200x2320mm
Net weight 1.5T

Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.

Structure

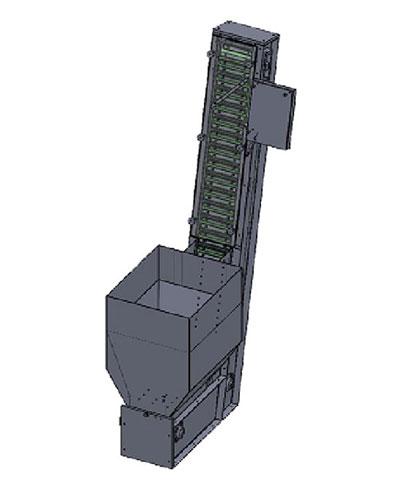

  • Conveying of empty bottle and plunger

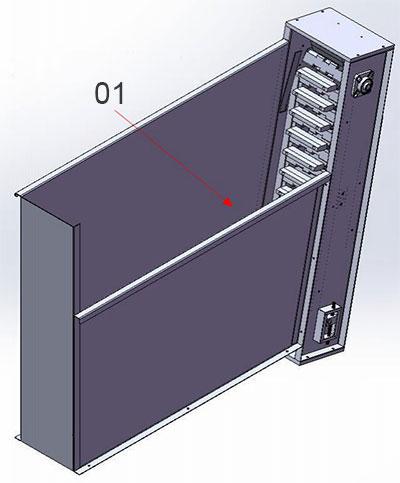

    • 01: Empty cartridges load bin

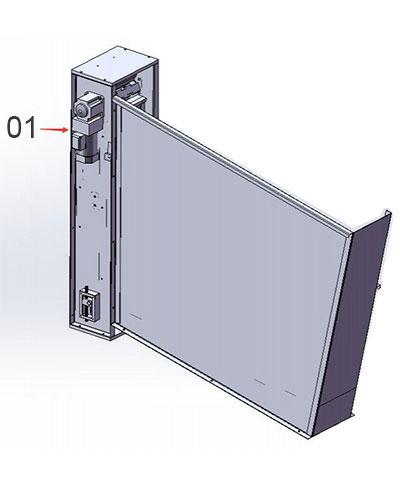

    • 01: Motor

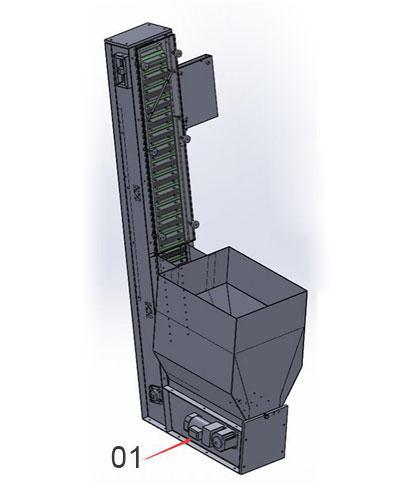

    • 01: Motor

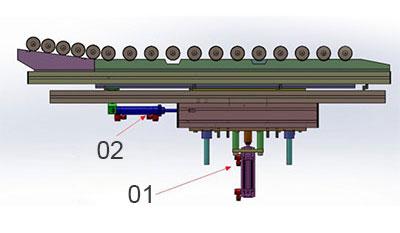

  • Conveying mechanism
    01: Actuator A
    02: Actuator B

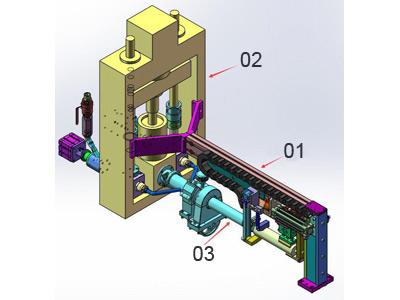

  • Automatic proportionally color mixing filling and automatic cutting
    01: Actuator A
    02: Actuator B
    03: Mixing Mechanism

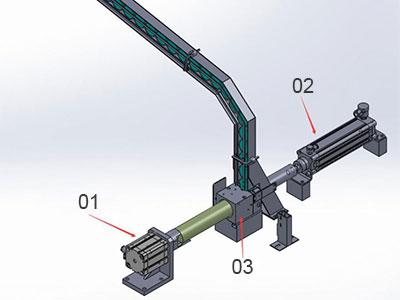

  • Automatic plunger inserting
    01: Cylinder actuator A
    02: Cylinder actuator B
    03: Mould

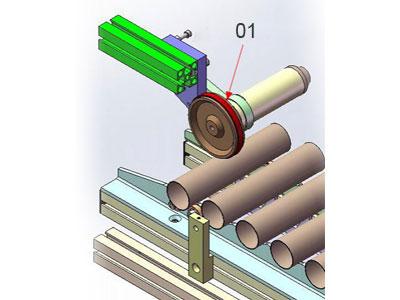

  • Automatic rotary coding
    01: Products rotating mechanism
  • Filling volume adjustment is optional in manual or automatic operation.
  • Failure warning and prompting
