Automatic Case Erector and Sealer

The automatic case erector and sealer is mainly used for matching automatic piston fillers, and it integrates sealant nozzle sorting, sealant nozzle adding, automatic case opening, automatic packaging following packing specification, product qualification placing, upper and lower sealing of case and security-label labeling.

Note: Great can match the voltage and frequency of the equipment based on customers in different regions.

• Sealant nozzle installing



  01: Sealant nozzle storage hopper
  02: Sealant nozzle sorting device
  03: sealant nozzle installing device
• Conveying mechanism



  01: Product without sealant nozzle
  02: Product with sealant nozzle
  03: Product conveying mechanism

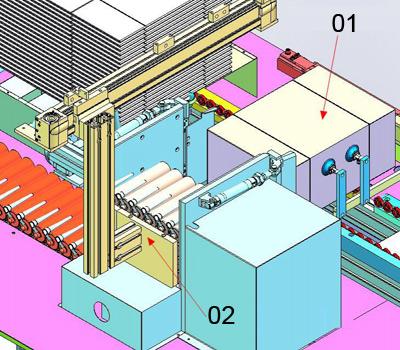

• product stacking



  01: Case erector
  02: Product stacking mechanisme

  Products are stacked following specifications of 5×5 25 cartridges/case or 4×6 24cartridges/case. Driven by servo motor module, it is quick and stable without omit, having 100% qualification rate.

• Automatic case erecting



  01: Case erector
  02: Product stacking station
• Pacing label and qualification



  01: Label feeder
  02: Label applicator
• Up and bottom sealing of the case



  01: Case sealer
  02: Auxiliary clip for case sealing

  The sealing has adjusting device to ensure a good sealing effect, aligning seals with uniform sealing clearance less than 1.5mm.

• Security label labeling



  01: Height adjusting hand wheel
  02: Labeling disk
  03: Labeling position
  04: Label tractor
• Fault alarming and displacing
