Tube Filler and Sealer GRRB-H3-3060A (high viscosity liquid / paste packaging with color mixing)

This tube filler and sealer is usually used to fill high viscous pastes, such as silicone sealant, modified saline adhesive, polyurethane sealant, photovoltaic sealant, etc.

This filler is modified based on the GRRB-3060A tube filler, adding a color mixing system. So it can mix different colors of sealants and then fill the mixed product. It is an integrated packaging equipment, having functions of aluminum composite film hot sealing, metering with static mixer and clipping. This tube filler should be used together with a static mixer.

Note: Great can match the equipment’s voltage and frequency for clients in different locations.

• Automatic filling (cooperating with the static mixer)



  01: Mixing mechanism
  02: Metering mechanism
  03:Aluminum film hot sealing
  04: Clipping mechanism

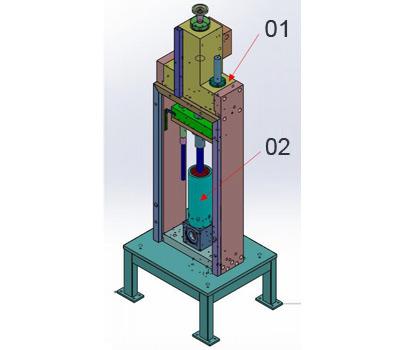

• Measuring system

  •

  •

    01: Hydraulic squeezing system
    02: Base material metering system

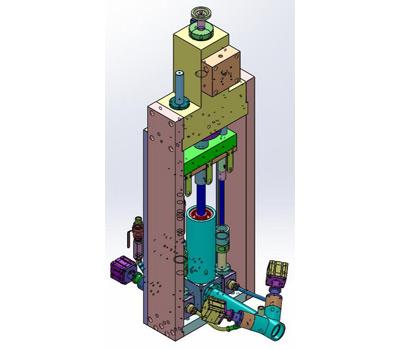

• Mixing system



  01: Additive metering
  02: Aase inlet
  03: Static mixing system

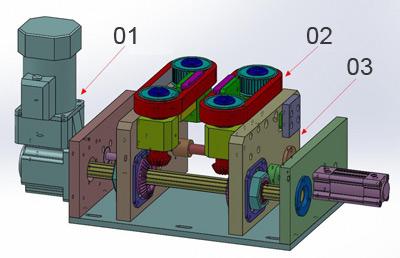

• Aluminum film transporting



  01:Gear motor
  02:Film conveying belt
  03:Film feeding clip
• Products discharge mechanism



  01: Products rotating mechanism

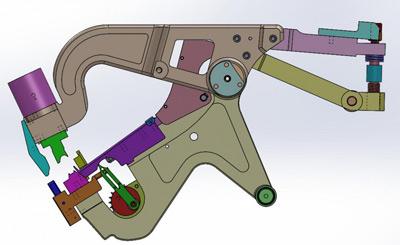

• Automatic clipping



• Aluminum film hot sealing device



  01: Hot sealing mould
• Automatic code-printing
• Filling volume adjustment is available in manual and automation
• Fault warning and displaying
